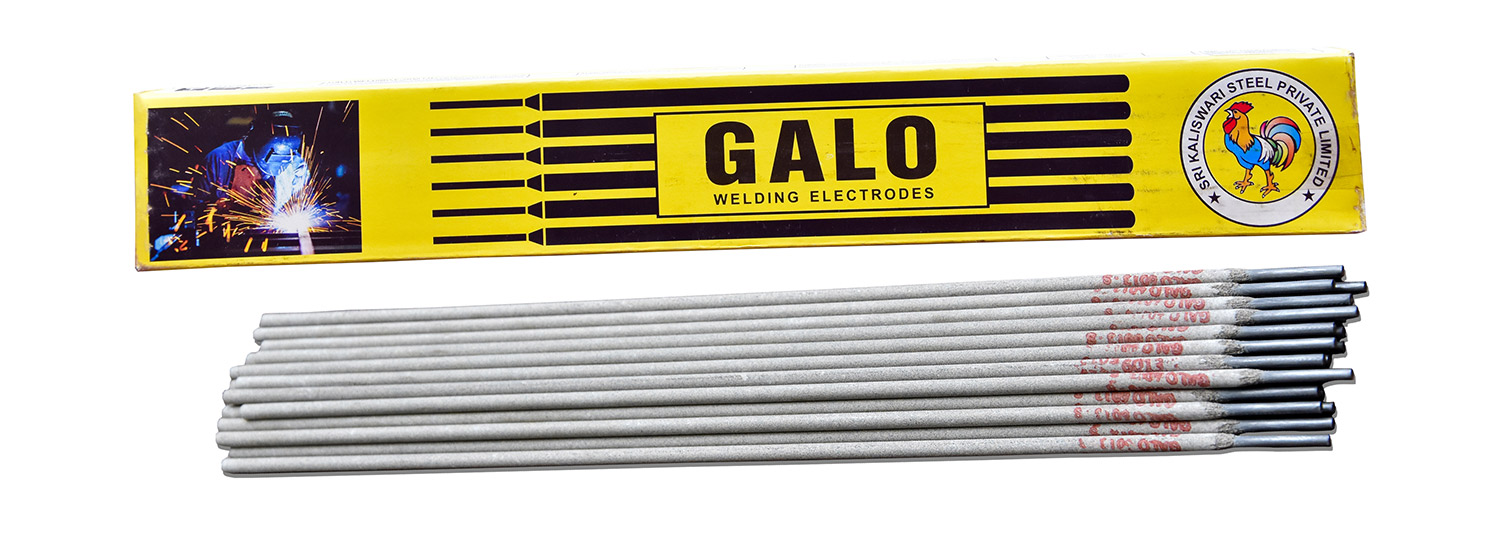

Welding Electrodes - E6013

Welding Electrodes - E6013

Rutile type General Purpose all Position Welding Electrode
Classification

AWS/SFA-5.1: E 6013, IS: ER 4222X

Characteristics

The electrode is characterized by

  • Easy striking and Restriking of the arc.
  • Very stable and smooth arc.
  • Self lifting slag.
  • Very low spatter.
  • Medium penetration.
  • Fine Ripples and shiny beads.
  • Suitable for all position welding.
  • Suitable for X- ray quality welds.
Approval

BIS

Application

Ideally suited for welding of pipelines and boiler tubes. A very wide range of jobs can be tackled effectively with this electrode.

Typical applications are

  • Tanks.
  • Trawlers.
  • Machinary constructions.
  • Bridegs.
  • Ships.
  • Dredgers.
  • Rail coaches.
  • Wagons.
  • Sheet metal work.
All Weld Chemical Composition%
C Mn Si S P
0.08 max 0.4–0.6 0.25 max 0.03 max 0.03 max
All Weld Mechanical Properties
YS (N/mm2) UTS (N/mm2) EL% (I=4d) CHARPY “v” NOTCH IMPACT AT
420 - 440 450 - 470 22 – 25 % 0oC : 50-60J
Dimension, Current Condition & Packing Data
Size Current
Conditions
(Amps )		 Packing
Diameter mm Length Packing No. of pcs / Pkt No. of Pkt / Case No. of Case / Ton
2.50 350 80 – 100 2.5 kgs 135 8 50
3.15 350 90 – 120 2.5 kgs 90 8 50
3.15 450 90 – 120 3.5 kgs 90 8 36
4.00 450 140 – 160 3.5 kgs 60 8 36
5.00 450 170 – 210 4.5 kgs 60 7 32
